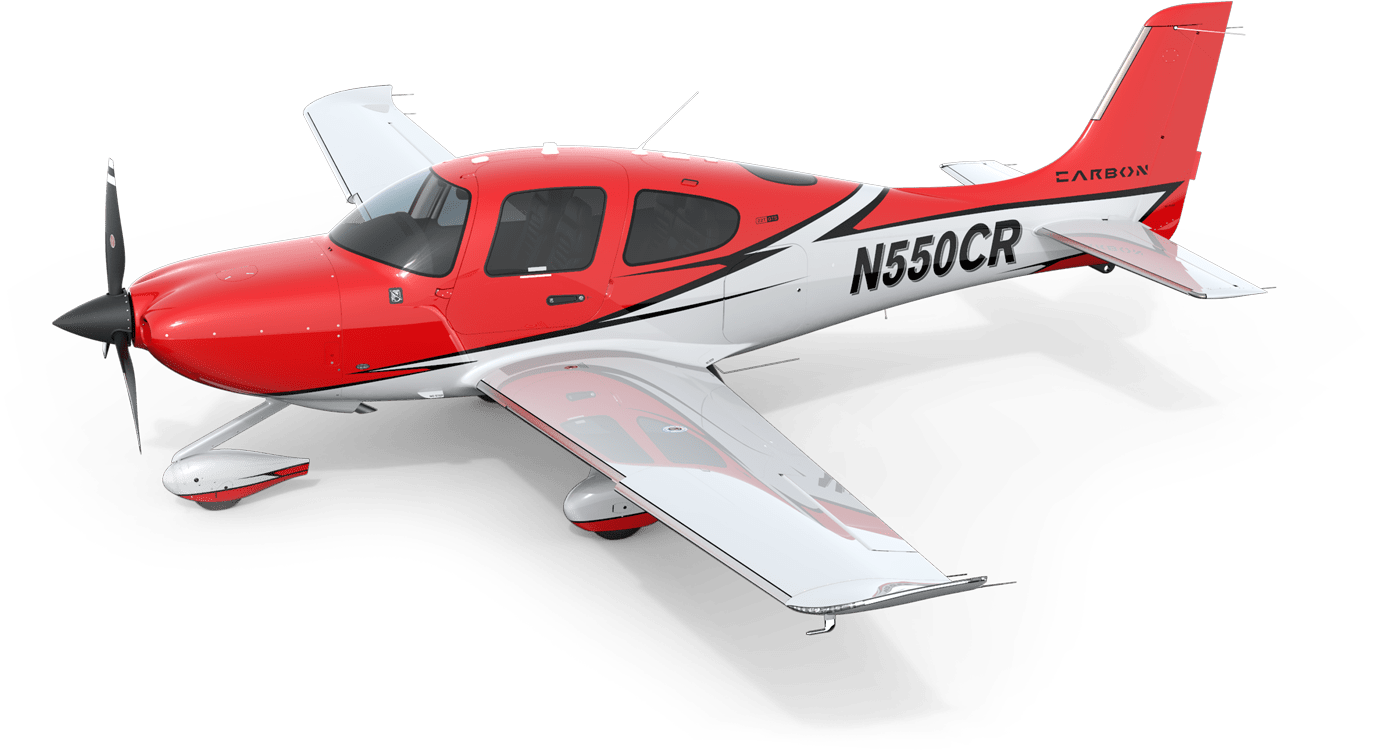

Explore the SR22T

2016 SR22T-SideView-2-1

Specs

Weight
  • Base Weight2352 lbs (1065 kg)
  • Useful Load1248 lbs (568 kg)
  • Cabin payload with 3 hr trip fuel and 45 min reserve893 lbs (407 kg)
Engine
  • ManufacturerContinental
  • ModelTSIO-550-K Turbocharged
  • Horsepower315
Dimensions
  • Wingspan38 ft 4 in (11.68 m)
  • Length26 ft (7.92 m)
  • Height8 ft 11 in (2.7 m)
  • Cabin Width49 in (124 cm)
  • Cabin Height50 in (127 cm)
Performance
  • Takeoff1517 ft (462 m)
  • Takeoff Over 50 ft Obstacle2080 ft (634 m)
  • Climb Rate1203 ft/min (6.1 m/sec)
  • Max operating Altitude25,000 ft (7,620 m)
  • Stall Speed with Flaps60 KCAS
  • Max Cruise Speed213 KTAS
  • Landing Groundroll1178 ft (359 m)

Kinetic

Meet every pilot’s new dream plane.
This is the one with everything you have ever wanted -the power, the prestige, all the available extras and more opportunities for your work and life – altogether in one golden aircraft. If flying is your most serious passion, then imagine where your life will take you in the turbocharged SR22T.

Airframe & Powerplant
Continental TSIO-550-K 315 HP Turbocharged Engine
Black Engine Baffling
Cirrus Airframe Parachute System™ (CAPS)
Airbag Seatbelts (Front Seats)
Single Movement Power Lever
Dual Side Yoke
Dual Alternators

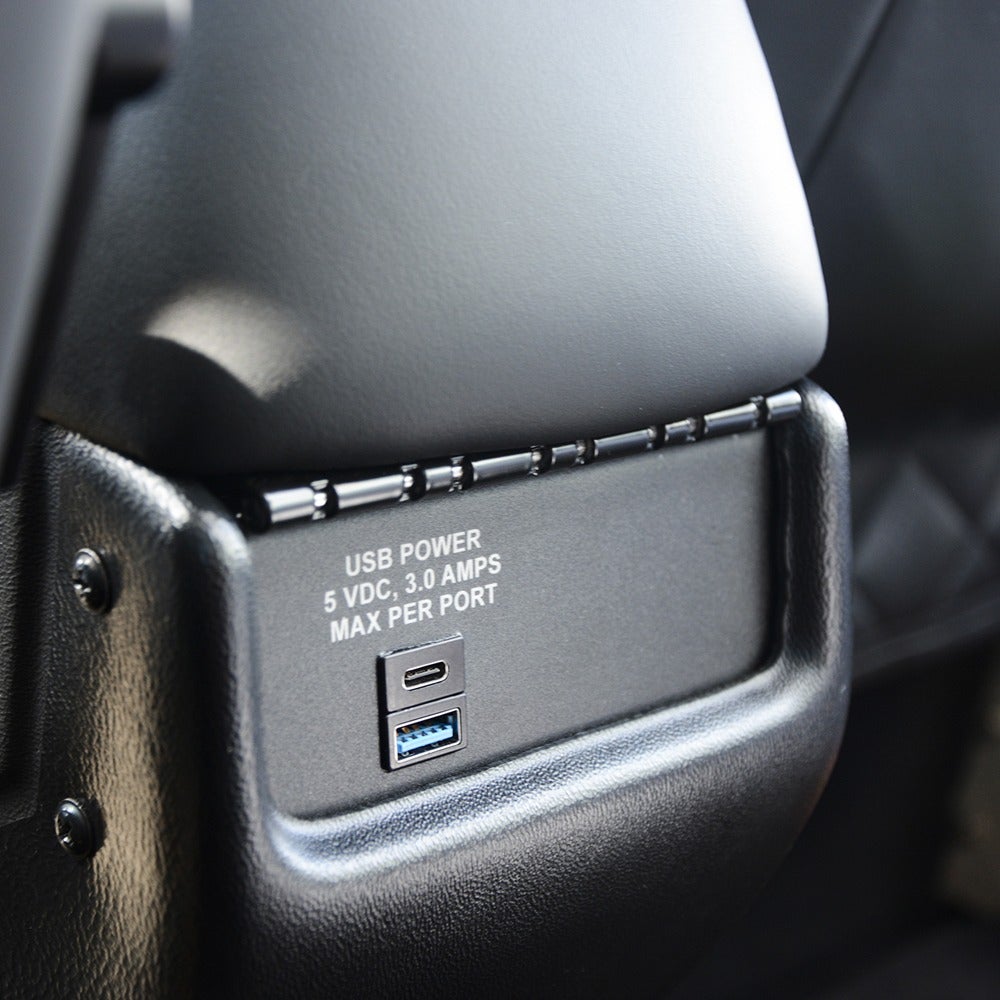

USB Power Ports
Hartzell 3-Blade Lightweight Composite Propeller
Advanced Wheel Fairings
High Performance Brakes
Tubeless Tires
Built-in Oxygen System
60/40 FlexSeating™- Seats up to 5
Standard Leather Interior
Tinted Windows
Standard Exterior
2 Year Spinner-to-Tail Warranty

Avionics

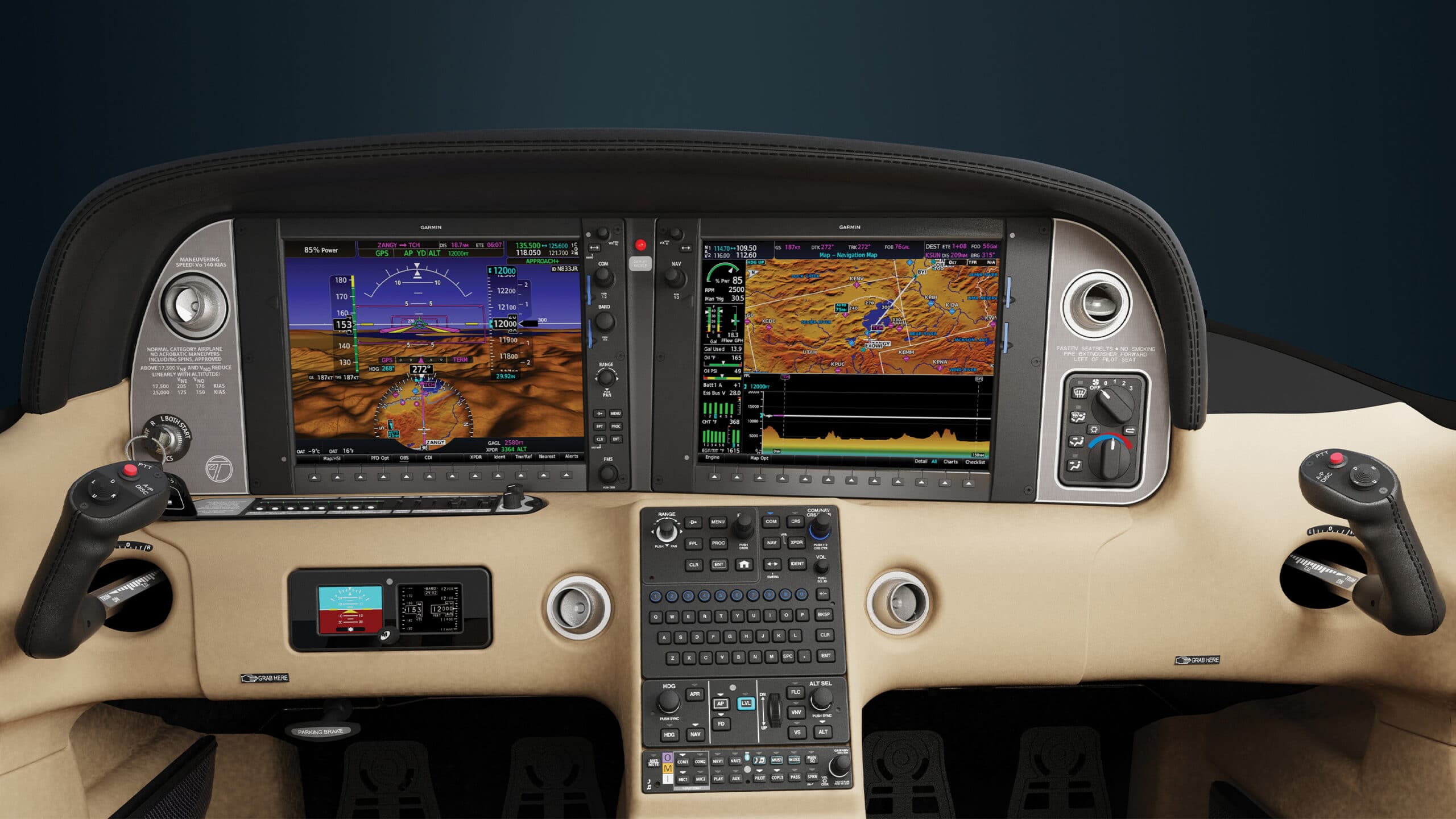

Cirrus Perspective™ by Garmin® Cockpit
Synthetic Vision Technology (SVT)
10” Screens
GMA 350c All-Digital Bluetooth® Audio Panel
Keyboard Controller
Dual WAAS GPS/Comm/Nav Radios
Engine & Fuel Monitoring
ADS-B Out Transponder
ADS-B In Weather & Traffic1
406 MHz ELT
FliteCharts® & SafeTaxi® *US only. Subscription required.
GFC 700 Autopilot including

Perspective Electronic Stability & Protection (ESP)
Dual AHRS
Hypoxia Check/Automated Descent Mode
Blue Level Button
Autopilot Stall Protection

Training

3 day Transition Training Package

1Available for US only; ADS-B In Weather and Traffic not included on export aircraft.

Perspective Plus

Add cruising comfort for both the pilot and the passengers with the Yaw Damper. It will practically eliminate the need for rudder input in those extended climbs and turns, allowing for a smoother ride. Your peace of mind also increases with Perspective Enhanced Vision System (EVS) and a second Air Data Computer. Perspective EVS creates an image of what is outside the aircraft by using infrared technology to turn night into day. The second Air Data Computer adds redundancy and cross-checking capabilities to your Cirrus Perspective cockpit.

Weight Δ: 9 lbs. (4.1 kg)

Perspective Alerts, Awareness, & Assistance

Maximum situational awareness goes hand in hand with maximum capability. Always know where other aircraft are located with Active Traffic Information that alerts you of all aircraft with an active transponder within your proximity. eTAWS is a TAWS-B terrain warning system with greater predictive precision information based on your flight path, and if terrain is ahead, gives you early warning aural alerts. Also know where you are on approach or on the airport itself with ChartView (Jeppesen published electronic charts) and one year of navigation data subscriptions.

Weight Δ: 15 lbs. (6.8 kg)

Digital Advantage

Upgrade your Cirrus to a truly all-digital cockpit The Digital 4-in-1 Standby Instrument and upgraded 12” screens offer tremendous situational awareness and 35% more screen real estate over the standard 10” screens. The Garmin Flight Stream 210 allows you to connect your mobile device to the Cirrus Perspective panel1 and XM WX Weather & Audio2 receiver completes the ultimate GA Cockpit.

Weight Δ: 12 lbs. (2.7 kg)

1Requires compatible device and software; additional subscription(s) may be required.
2Subscription Required; Available for US Only; Not included on export aircraft.

Certified Flight Into Known Ice

Increase your flying flexibility and capability with the Cirrus Known Ice Protection System. Not an STC or an afterthought, this TKS-based system was uniquely engineered to include innovative features such as dual windshield sprayers that ensure landing visibility, dual TKS fluid tanks with automatic tank switching and three TKS flow rate options to cover every condition. More impressive is the full integration with the Cirrus Perspective cockpit providing ready access to TKS fluid duration and range information and all System Operating Parameters. Finally, this package also guarantees your aircraft is ready for colder weather flying and maximized engine life with a Tanis Engine Pre-Heater.

Weight Δ = 63 lbs (28.6 kg)

Premium Select

Your aircraft will take you many places; make it look even better at your home airport with the Premium Appearance Package. Adds leather bolstered seats, UV windows, two-tone silver over white paint, polished spinner, handlesand steps, remote keyless entry and interior/exterior ambient convenience lighting.



Carbon Appearance Upgrade1

Inspired by the unmistakable style of the most legendary sports cars, the Carbon Appearance premium upgrade utilizes a new palette of accent colors that gives the 2016 Cirrus a stunning tarmac presence. Interior details such as jet black vents, carbon fiber instrument panel lobes and two-tone premium leather bolstered seats complete this exhilarating look.

Platinum Appearance Upgrade1

A true sense of traditional, elegant and luxurious style is captured in the 2016 Platinum Appearance premium upgrade. Fluid lines and a distinguished collection of earthy exterior colors highlight this desirable option for 2016. Nickel vents, a painted spinner, and solid color premium leather bolstered seats provide the perfect finishing touches that complement this rich appearance upgrade.

Rhodium Appearance Upgrade1

Timeless and sophisticated, the Rhodium Appearance premium upgrade defines modern luxury with iconic simplicity. Make your statement with a striking yet subtle exterior in one of three stunning new metallic hues. Nickel vents, a painted spinner, and solid color premium leather bolstered seats provide the perfect finishing touches that complement this rich new addition to Cirrus style.

1Upgrade for Premium Appearance Package

GTS

The 2016 GTS is truly the SR22T flagship. Combine all the packages for even greater value: Perspective Plus, Perspective Awareness Alerts & Assistance, Digital Advantage, Certified Flight into Known Ice, Premium Appearance, Carbon/Platinum/Rhodium Upgrade and authentic GTS badging. GTS is the luxury, technology, and performance standard by which all other aircraft are measured.

GTS Weight: 2451 lbs. (1107 kg)
GTS without Ice Protection Weight: 2443 lbs (1104 kg) – AC replaces Certified Flight into Known Ice

Additional Options

Air Conditioning
Stay cool with this factory installed Air Conditioning System.
Weight Δ = 55 lbs (24.9 kg)

Perspective Global Connect
Worldwide weather, satellite phone and text messaging through Iridium Communications, fully integrated for use with your cabin headphones means you’re always within reach.
Weight Δ = 6 lbs (2.7 kg)

Yaw Damper
Practically eliminates the need for the rudder in extended climbs and turns, allowing for a smoother ride for everyone on board as the annoying bumps are reduced. Also included in the Perspective Plus Package.
Weight Δ = 4 lbs (1.8 kg)

Lightning Detection
Enhance weather awareness with instantaneous lightning information for all types of convective activity.
Weight Δ = 6 lbs (2.7 kg)

Tanis Engine Pre-Heater
Guarantee your aircraft is ready for colder weather flying and maximize your engine life. Also included in the Certified Flight into Known Ice Package.
Weight Δ = 2 lbs (.9 kg)

Warranty

3rd Year Spinner-to-Tail Warranty.
Give yourself and your investment the peace of mind that during the first three years of ownership, if any system in your aircraft needs attention, Cirrus will take care of you.

4th & 5th Year Spinner-to-Tail Warranty Upgrade
Add two more years for an unprecedented and industry-leading five year Spinner-to-Tail warranty. The most complete coverage for the world’s most desired aircraft.

Option Packages

Perspective Plus

Add cruising comfort for both the pilot and the passengers with the Yaw Damper. It will practically eliminate the need for rudder input in those extended climbs and turns, allowing for a smoother ride. Your peace of mind also increases with Perspective Enhanced Vision System (EVS) and a second Air Data Computer. Perspective EVS creates an image of what is outside the aircraft by using infrared technology to turn night into day. The second Air Data Computer adds redundancy and cross-checking capabilities to your Cirrus Perspective cockpit.

Weight Δ: 9 lbs. (4.1 kg)

Perspective Alerts, Awareness, & Assistance

Maximum situational awareness goes hand in hand with maximum capability. Always know where other aircraft are located with Active Traffic Information that alerts you of all aircraft with an active transponder within your proximity. eTAWS is a TAWS-B terrain warning system with greater predictive precision information based on your flight path, and if terrain is ahead, gives you early warning aural alerts. Also know where you are on approach or on the airport itself with ChartView (Jeppesen published electronic charts) and one year of navigation data subscriptions.

Weight Δ: 15 lbs. (6.8 kg)

Digital Advantage

Upgrade your Cirrus to a truly all-digital cockpit The Digital 4-in-1 Standby Instrument and upgraded 12” screens offer tremendous situational awareness and 35% more screen real estate over the standard 10” screens. The Garmin Flight Stream 210 allows you to connect your mobile device to the Cirrus Perspective panel1 and XM WX Weather & Audio2 receiver completes the ultimate GA Cockpit.

Weight Δ: 12 lbs. (2.7 kg)

1Requires compatible device and software; additional subscription(s) may be required.
2Subscription Required; Available for US Only; Not included on export aircraft.

Certified Flight Into Known Ice

Increase your flying flexibility and capability with the Cirrus Known Ice Protection System. Not an STC or an afterthought, this TKS-based system was uniquely engineered to include innovative features such as dual windshield sprayers that ensure landing visibility, dual TKS fluid tanks with automatic tank switching and three TKS flow rate options to cover every condition. More impressive is the full integration with the Cirrus Perspective cockpit providing ready access to TKS fluid duration and range information and all System Operating Parameters. Finally, this package also guarantees your aircraft is ready for colder weather flying and maximized engine life with a Tanis Engine Pre-Heater.

Weight Δ = 63 lbs (28.6 kg)

Premium Select

Your aircraft will take you many places; make it look even better at your home airport with the Premium Appearance Package. Adds leather bolstered seats, UV windows, two-tone silver over white paint, polished spinner, handlesand steps, remote keyless entry and interior/exterior ambient convenience lighting.



Carbon Appearance Upgrade1

Inspired by the unmistakable style of the most legendary sports cars, the Carbon Appearance premium upgrade utilizes a new palette of accent colors that gives the 2016 Cirrus a stunning tarmac presence. Interior details such as jet black vents, carbon fiber instrument panel lobes and two-tone premium leather bolstered seats complete this exhilarating look.

Platinum Appearance Upgrade1

A true sense of traditional, elegant and luxurious style is captured in the 2016 Platinum Appearance premium upgrade. Fluid lines and a distinguished collection of earthy exterior colors highlight this desirable option for 2016. Nickel vents, a painted spinner, and solid color premium leather bolstered seats provide the perfect finishing touches that complement this rich appearance upgrade.

Rhodium Appearance Upgrade1

Timeless and sophisticated, the Rhodium Appearance premium upgrade defines modern luxury with iconic simplicity. Make your statement with a striking yet subtle exterior in one of three stunning new metallic hues. Nickel vents, a painted spinner, and solid color premium leather bolstered seats provide the perfect finishing touches that complement this rich new addition to Cirrus style.

1Upgrade for Premium Appearance Package

GTS

The 2016 GTS is truly the SR22T flagship. Combine all the packages for even greater value: Perspective Plus, Perspective Awareness Alerts & Assistance, Digital Advantage, Certified Flight into Known Ice, Premium Appearance, Carbon/Platinum/Rhodium Upgrade and authentic GTS badging. GTS is the luxury, technology, and performance standard by which all other aircraft are measured.

GTS Weight: 2451 lbs. (1107 kg)
GTS without Ice Protection Weight: 2443 lbs (1104 kg) – AC replaces Certified Flight into Known Ice

Additional Options

Air Conditioning
Stay cool with this factory installed Air Conditioning System.
Weight Δ = 55 lbs (24.9 kg)

Perspective Global Connect
Worldwide weather, satellite phone and text messaging through Iridium Communications, fully integrated for use with your cabin headphones means you’re always within reach.
Weight Δ = 6 lbs (2.7 kg)

Yaw Damper
Practically eliminates the need for the rudder in extended climbs and turns, allowing for a smoother ride for everyone on board as the annoying bumps are reduced. Also included in the Perspective Plus Package.
Weight Δ = 4 lbs (1.8 kg)

Lightning Detection
Enhance weather awareness with instantaneous lightning information for all types of convective activity.
Weight Δ = 6 lbs (2.7 kg)

Tanis Engine Pre-Heater
Guarantee your aircraft is ready for colder weather flying and maximize your engine life. Also included in the Certified Flight into Known Ice Package.
Weight Δ = 2 lbs (.9 kg)

Warranty

3rd Year Spinner-to-Tail Warranty.
Give yourself and your investment the peace of mind that during the first three years of ownership, if any system in your aircraft needs attention, Cirrus will take care of you.

4th & 5th Year Spinner-to-Tail Warranty Upgrade
Add two more years for an unprecedented and industry-leading five year Spinner-to-Tail warranty. The most complete coverage for the world’s most desired aircraft.

Upgrades

Cirrus owners already have an unparalleled appreciation and expectation for quality and performance. It’s the reason Cirrus continues to be the world’s best-selling airplane in its class. Now, Xi takes this one step further through individualization – by making you an integral part of the design team for your dream airplane. A unique experience worthy of every flight you will make in your Cirrus, you will develop a personal working relationship with the Xi Team, working one-on-one to tailor your plane to your exact specifications and preferences for materials, colors, designs and more. With Xi, you define the art of the possible.

gallery-xi-6

Personalized

Xi makes you an integral part of the design team for your dream aircraft. You will develop a personal working relationship with a Xi Specialist, working one on one to tailor your Cirrus to your exact specifications. Xi customers will be invited to join us at Cirrus Headquarters in Duluth, Minnesota. Here you will meet face to face with your Specialist in the Xi Studio to make important design decisions and become a part of the Cirrus culture at work.

gallery-xi-3

Tailored Design

You will work with your Xi Specialist directly to select all materials and options for your aircraft. With each decision your Cirrus will take form. Your design team will create sketches and send samples to help you with the details that will make this plane yours. From the exterior paint to every stitch in the seats, you will be involved in designing the Cirrus of your dreams.

gallery-xi-2

Color Palette

First, choose your base color. This sets the tone for your exterior look – the color option that will determine just how bold your plane will be at first sight – as the base will be the primary color applied to the entire aircraft. Next up are the details that will really set your Cirrus apart on the runway. Accent colors may be added to the fuselage, wingtips, and wheel pants to create that perfect image you’ve always dreamed of.

gallery-xi-5

Graphics

Cirrus can create any graphic treatment, in any color, size or shape for your Xi to craft an exterior composition tailored to your wishes. Stripes, flourishes – final touches that enhance your aircraft’s look and individuality.
